Traditional Access Control & Peripherals Wiring

• ASC Wiring Method

  Different models of access controllers only have different wiring locations, the wiring methods are all the same.

  Note：
  1. If you use a third party card reader, you can only connect wiegand signal.
  2. Magnetic lock needs separate power supply
  3. Alarm input/alarm output are switching signals, normally open/normally closed can be configured in the web interface.

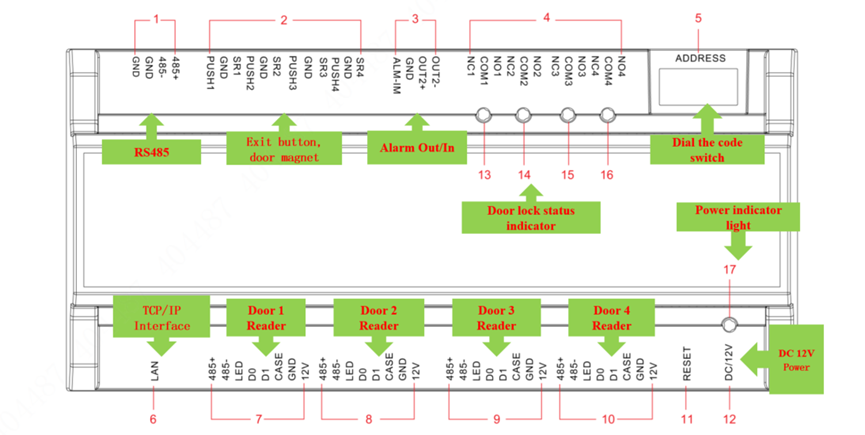

  4. Reader and door lock status indicator should correspond, that is, door 1 (Figure 7) corresponding to the door lock status indicator wiring should be NO1.NC1.COM1 (Figure 13)
