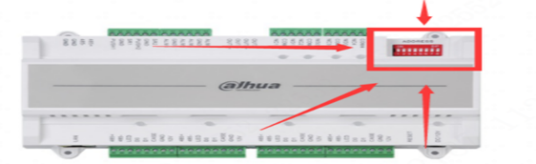

1. Confirm how many doors can be controlled by this device 1 door ASC :

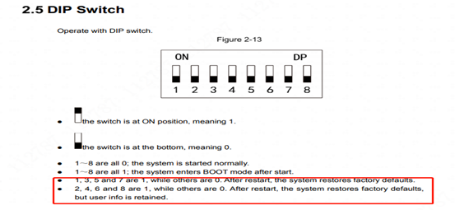

power on and turn the DIP switch 1,3 to on (1),others are off(0);
2,4,8 door ASC:
power on and turn the DIP switch 1,3,5,7 to on (1),others are off(0);
Power off and power on again to restart ,then dial back after hearing a long beep sound Default IP:192.168.0.2 Default password :123456
